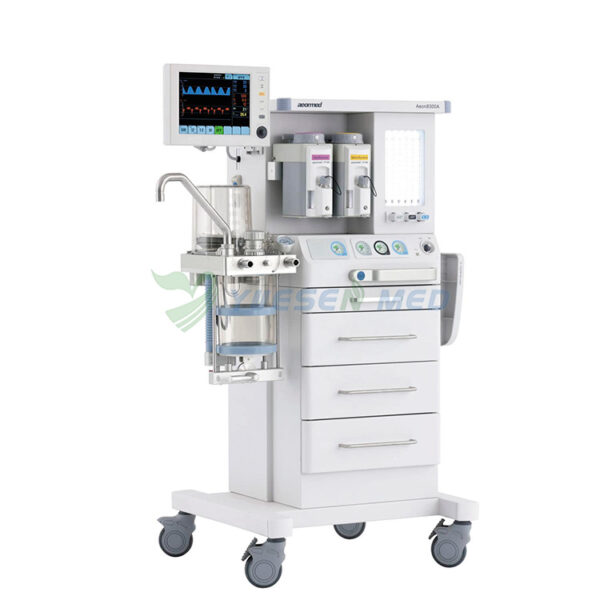

Description
Description
PCV and SIMV+PS modes ensure flexibility in ventilation, machine doable for both pediatric and adult operation
Optional monitoring functions, CO2 and anesthetic gas
Flowmeter provides minimum 25% concentration of oxygen in O2 /N2O mixture

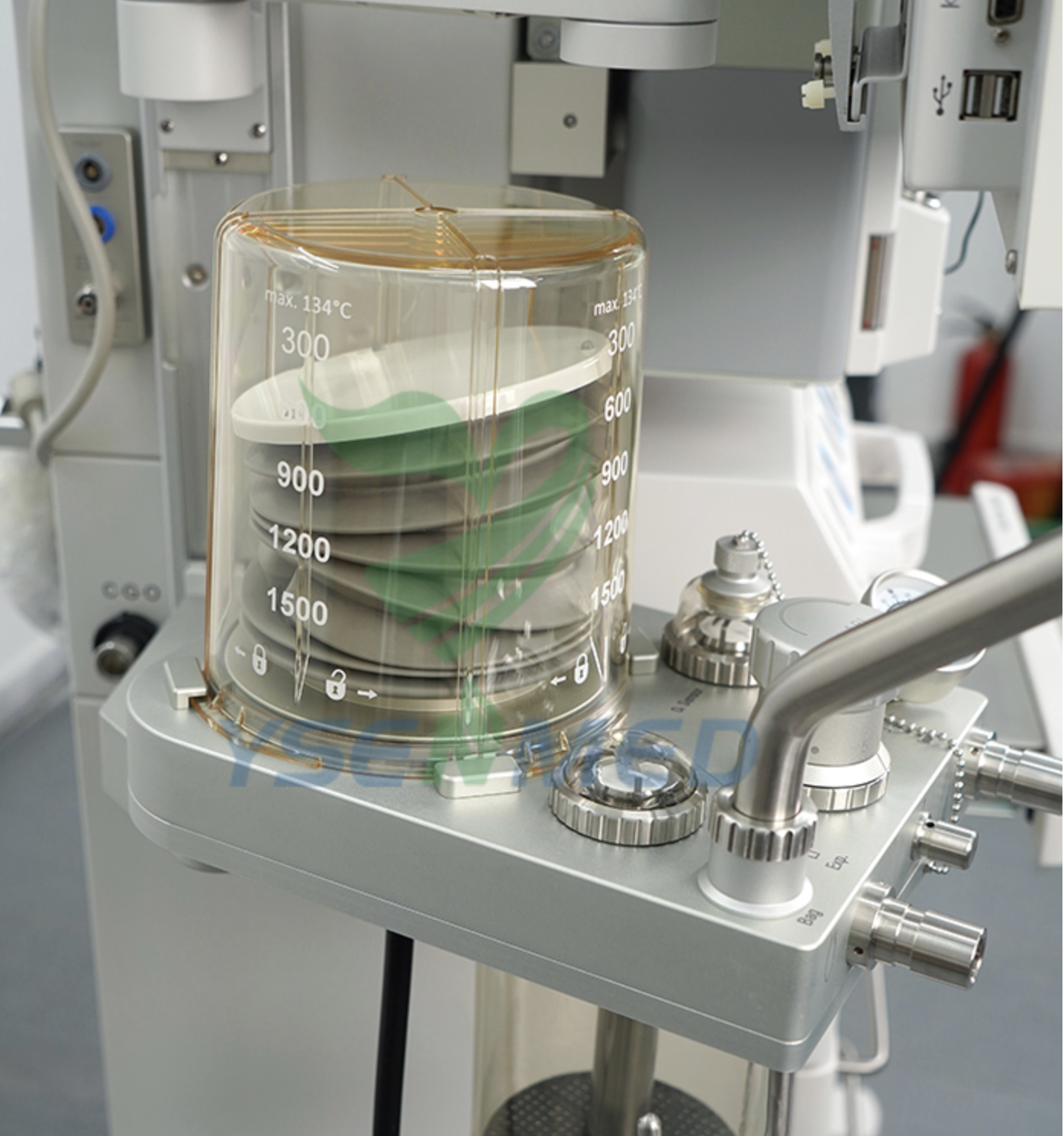

Breathing system easy to remove and clean, fully autoclavable, optional CO2 bypass
Enhances usability with auxiliary oxygen, suction, auxiliary power source, monitor arm, infusion pump etc.
CE marked, meets EU clinical requirement
|
Physical & Environment Specifications |
|
|
Dimensions(W×H×D) |
704mm × 1403mm × 750mm |
|
Weight |
100kg (basic unit) |
|
Storage Humidity: |
≤93% (noncondensing) |
|
Operation Humidity |
≤80% (noncondensing) |
|
Electrical Specifications |
|
|
Mains |
100~240V AC, 50/60Hz |
|
Battery |
24V DC, minimum 120 min |
|
Outlets |
3 on back, 1.5A individual |
|
Pneumatic Specifications |
|
|
Gas Supply |
Air, O2, N2O; 280kPa ~ 600kPa |
|

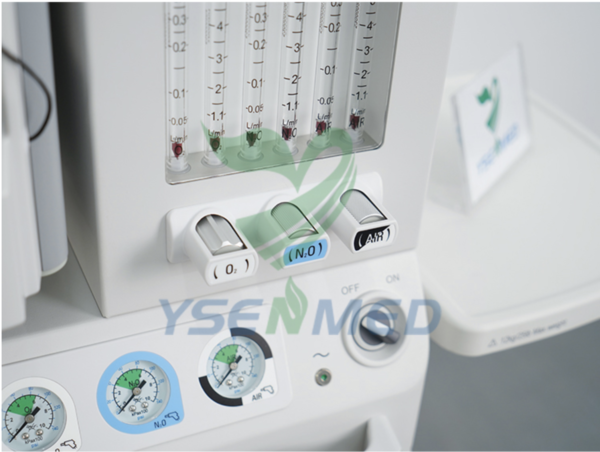

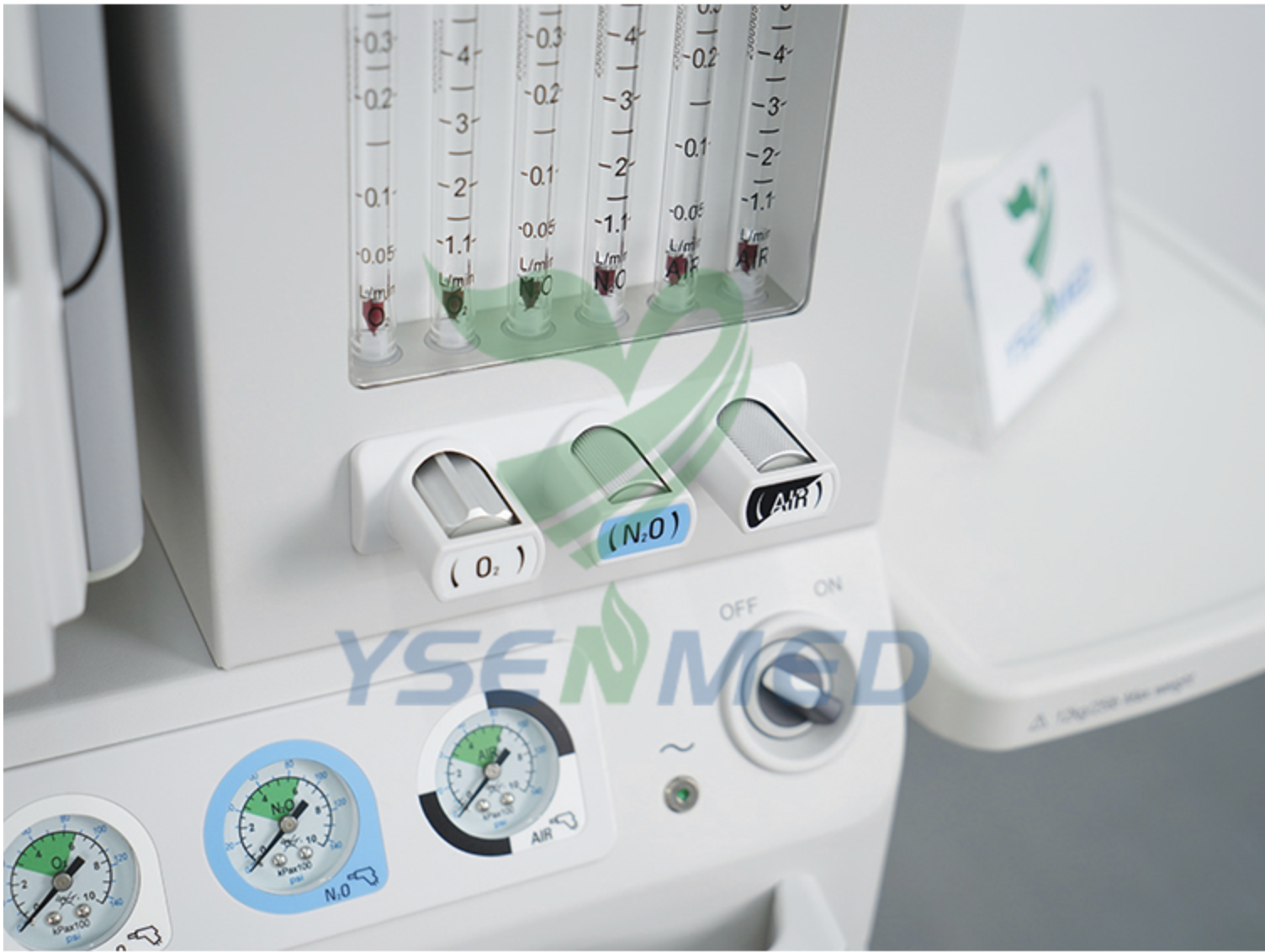

Flowmeters |
O2 Range: 0~1L/min; 1~10L/min Auxiliary O2 Range: 0 ~12 L/min |
|

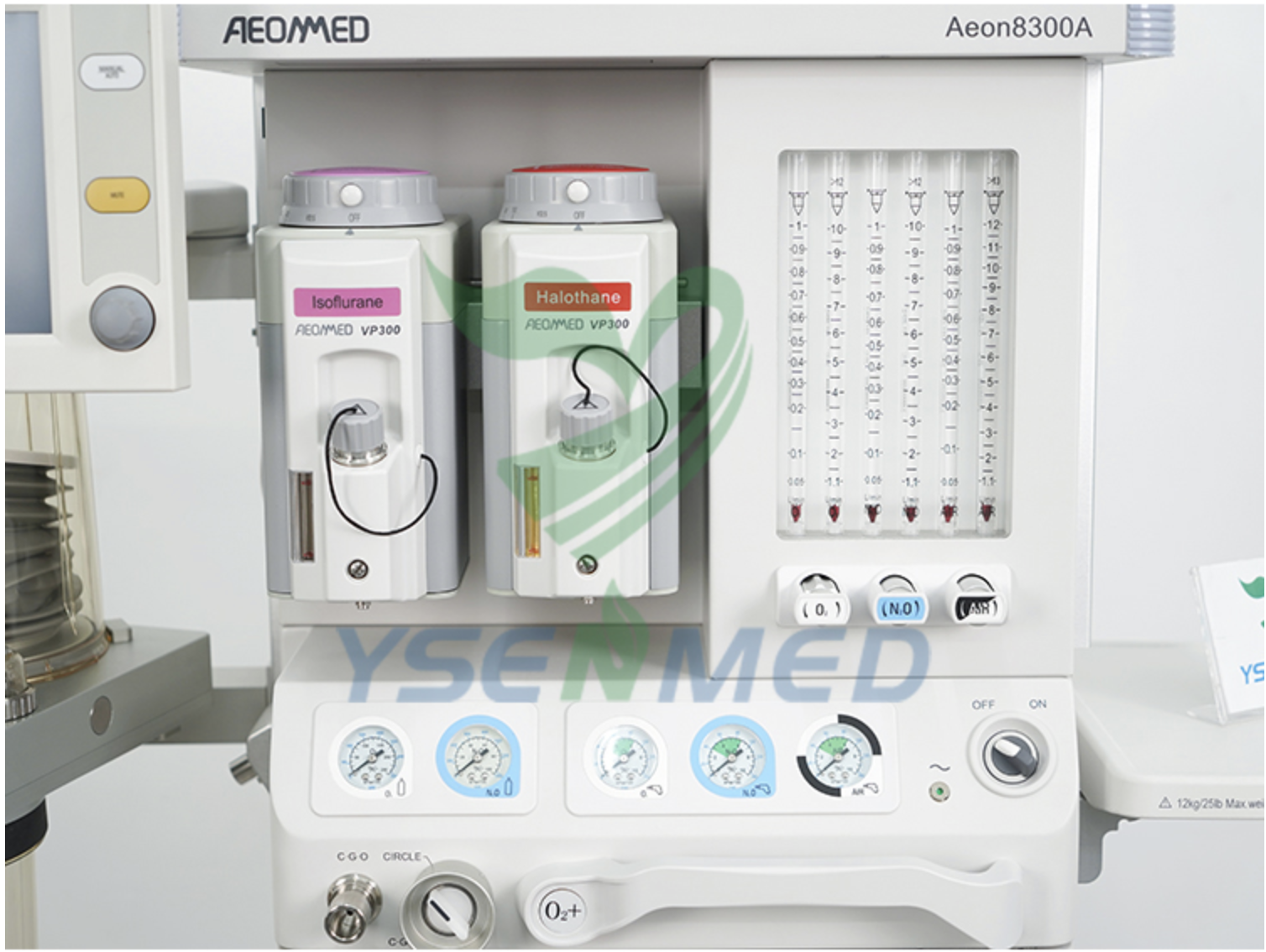

Gas System |
Flowmeter backlight |
|

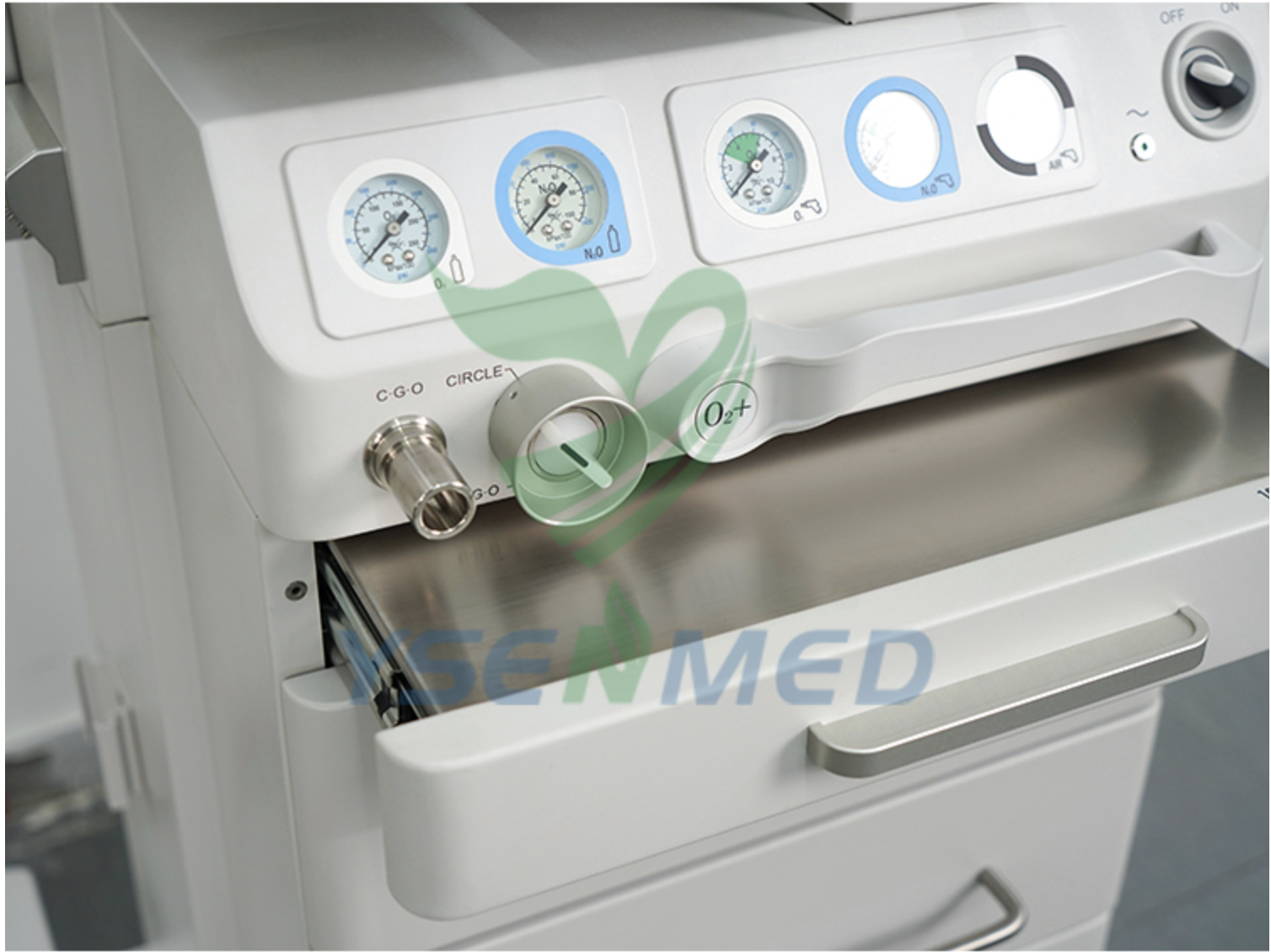

ACGO |
Optional auxiliary common gas outlet |
|
AGSS |
Optional anesthetic gas scavenging system |
|

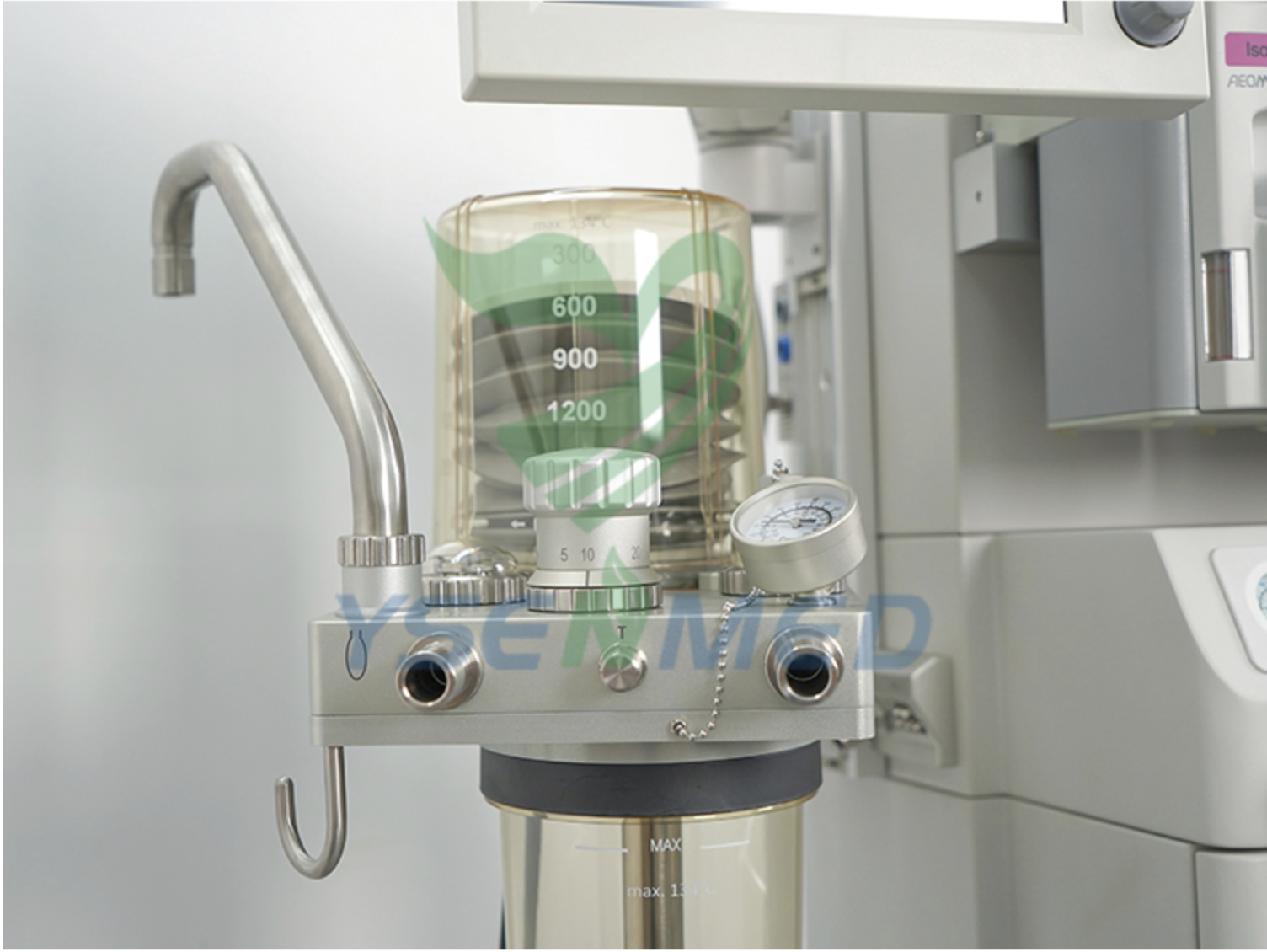

Breathing System Specifications |
|
|
Operational Modes |
Closed, Semi-closed, Semi-open |
|
CO2 Canister |
2 Loose fill (3L) or 2 prepacks, |
|
APL Range |
Spontaneous breathing (SP) -70 cmH2O |
|
Material |
Autoclavable (except O2 cell and mechanical pressure gauge) |
|
CO2 bypas |
Optional |
|
Ventilator Specifications |
|
|
Driven Mode |
Pneumatically driven and electronically controlled |
|
Patient Types |
Adult, Pediatric |
|
Ventilation Modes |
IPPV, PCV, SIMV+PS, PS and Manual |
|
Setting Modes |
Touch key & navigator wheel knob |
|
Tidal Volume |
20~1500ml |
|
Ventilation Frequency |
4~100bpm |
|
I:E Ratio |
4:1~1:8 |
|
Pressure (inspired) Range |
5~70cmH2O |
|
Pressure (support) Range |
3~50cmH2O |
|
PEEP |
Off,3~30 cmH2O |
|
Tslope |
0~2s |
|
Inspiratory Plateau |
Off, 5%~60%Ti |
|
Trigger Sensitivity |
1~15L/min |
|
Compensation |
Compliance and leakage compensation, |
|
Ventilator Monitoring |
|
|
Display |
10.4” TFT color screen |
|
Pressure |
Ppeak, Pplat,Pmean,PEEP |
|
Volumes |
MV, Vt, Freq |
